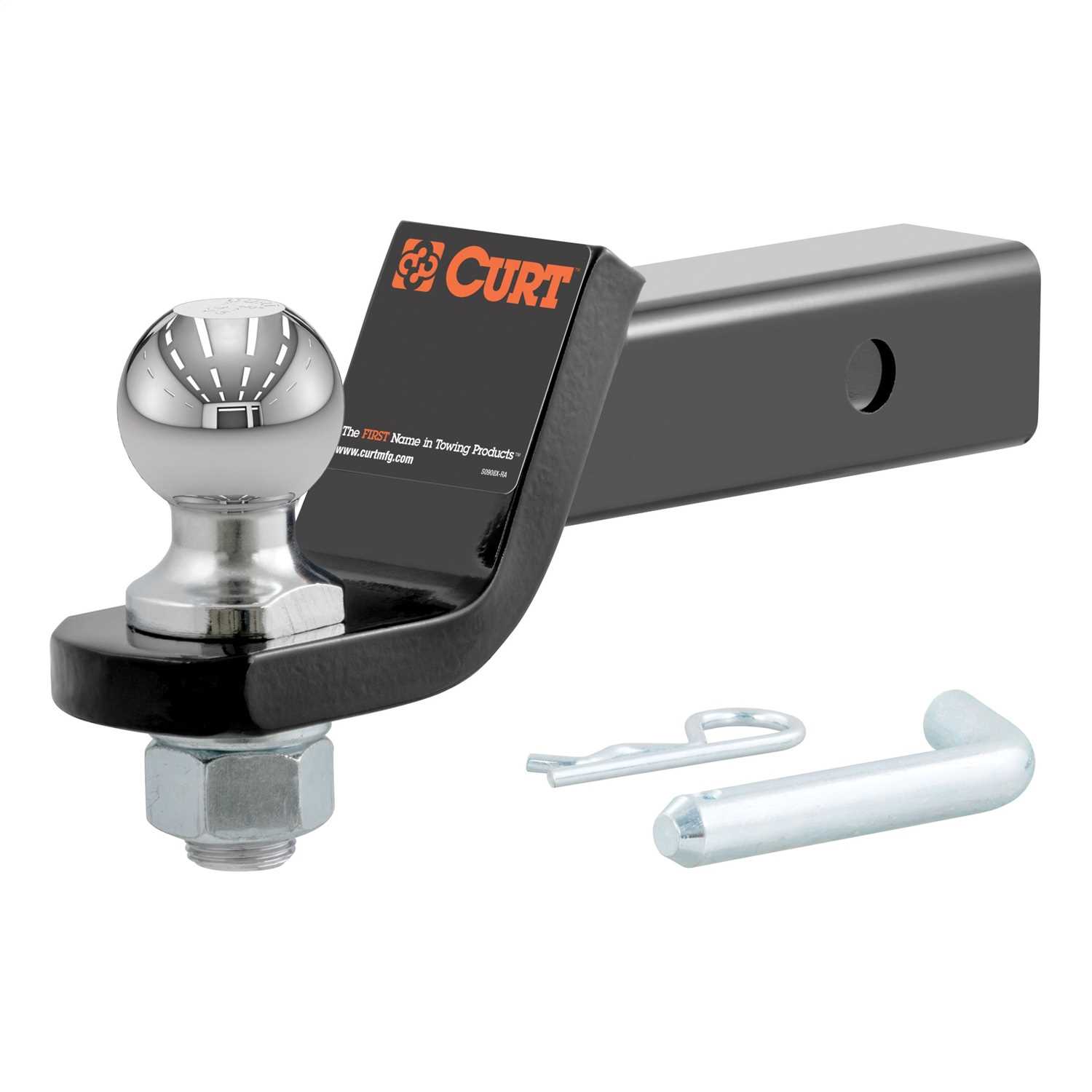

45036 CURT Class III Loaded Ball Mount
45036 CURT Class III Loaded Ball Mount 45036
CURT 45036
Class III Loaded Ball Mount - 2 in. Rec. - 7500lbs. GTW - 750lbs. TW - 2 in. Factory Torqued Ball - 8.25 in. Length - 0.75 in. Rise - 2 in. Drop - 5/8 in. Hitch Pin/Clip - Black
Product Features
- Fits Trailer Hitches w/A 2 In. X 2 In. Receiver Tube Opening
- Factory-Torqued Curt Trailer Ball Accepts A 2 In. Coupler
- 2 In. Drop For Precise Trailer Leveling
- Hollow Shank Weighs Less And Can Be Used w/An Anti-Rattle Kit
- CNC-Formed Robotically Welded And Mechanically Descaled
- Protected By A Durable Powder Coat Finish
- Trailer Ball Features A Polished Chrome-Plated Finish
- 5/8 In. Hitch PinandClip For Secure Mounting In Receiver Tube
- Assembled in USA
Product Specifications
- Class III Loaded Ball Mount
- 2 in. Rec.
- 7500lbs. GTW
- 750lbs. TW
- 2 in. Factory Torqued Ball
- 8.25 in. Length
- 0.75 in. Rise
- 2 in. Drop
- 5/8 in. Hitch Pin/Clip
- Black
- Ball Diameter: 2.000 in.
- Drop: 2.000 in.
- Finish: Gloss Black Powder Coat
- Gross Trailer Weight: 7500 lbs.
- Overall Length: 8.250 in.
- Receiver Tube Size: 2.000 in.
- Rise: 0.750 in.
- Style: Fixed
- WARNING CA Proposition 65: No
- WC Tongue Weight: 750
Description
When it comes to ball mounts, a CURT loaded ball mount is the complete package. These stingers come with all necessary towing components and are pre-fitted with a factory-torqued trailer ball, eliminating the need to mount and torque your own trailer ball. This means a loaded ball mount is ready for towing right out of the package! Each one also comes with a pin and clip for mounting the ball mount into the appropriate size receiver tube. CURT offers loaded ball mounts in a variety of styles and weight ratings. This CURT loaded ball mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It comes with a 2 in. trailer ball, making it an excellent choice for towing most boat trailers, utility trailers, campers, livestock trailers and recreational vehicle trailers used for hauling dirt bikes, motorcycles and ATVs (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This ball mount also has a length of 8-1/4 in., a drop of 2 in. and comes with a gloss black powder coat finish to resist rust, chipping and UV damage. All CURT loaded ball mounts feature 2 in. x 2 in. shanks and are made with the same superior quality we put into each of our products.
