51170 CURT Spectrum Brake Control

Spectrum Brake Control - w/Triple-Axis Accelerometer - Motion-Sensing Accelerometer

Enter Your Vehicle Info here [View Fitment Guide]
Product Information
Part #
51170

Product Features


  • Controls All Brake Settings With A Simple Push-Button Rotary Knob
  • Clean Dash-Mounted Oem-Style Interface W/10 Tri-Color Leds
  • Main Module Can Be Mounted Anywhere At Any Orientation
  • Highly Responsive Smooth Stops W/Triple-Axis Accelerometer
  • Easily Accessible Manual Override With The Press Of A Button
  • Drill Mount Or Surface Adhesive Mount
  • Equipped With A Quick Plug For Easy Plug-And-Play Installation
  • Compatible With Low Voltage Or Pulse Width Modulation Systems
  • Operates 2-8 Trailer Brakes At A Time; 1 To 4 Axles
  • User-Selectable Power Output And Trailer Brake Light Activation
  • Automatic Leveling And Calibration Eliminate Setup Requirements
  • Built-In Reverse-Polarity And Short-Circuit Protection

Product Specifications


  • Spectrum Brake Control
  • w/Triple-Axis Accelerometer
  • Motion-Sensing Accelerometer
WARNING: WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer, and Di-n-butyl phthalate, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Description

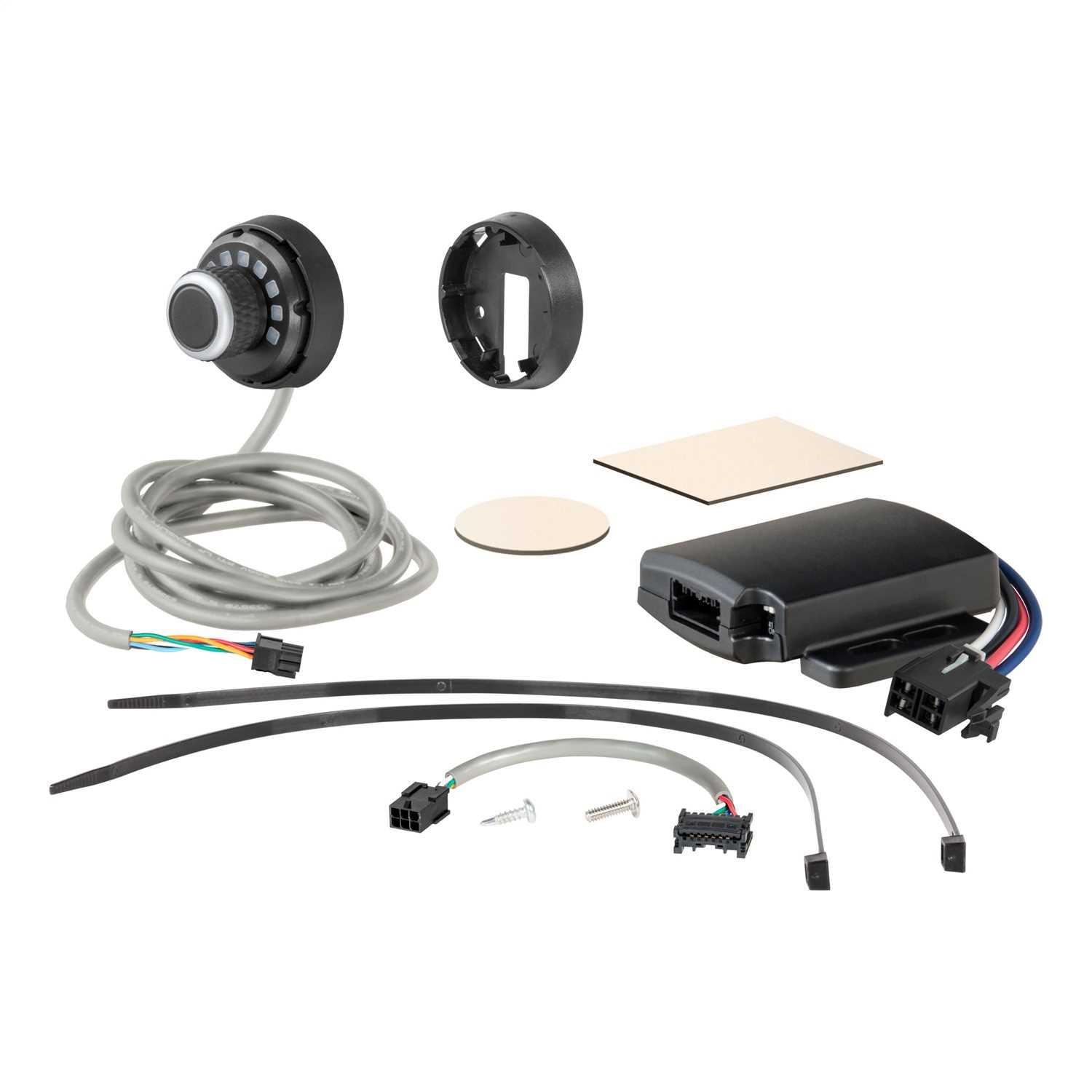

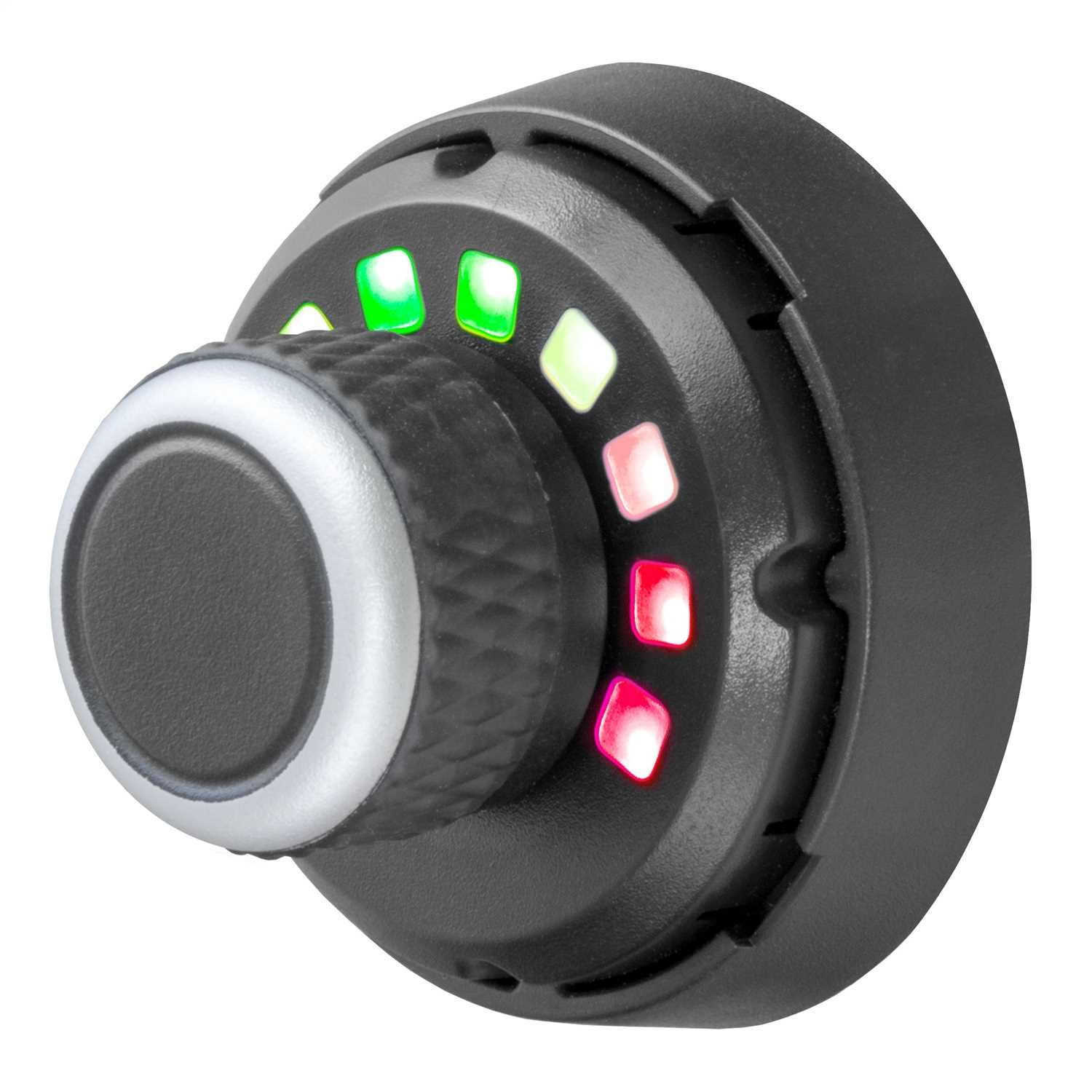

 The CURT Spectrum trailer brake controller provides powerful brake operation while maintaining a clean, consistent OE look and feel on the dash of your vehicle. It is comprised of a main module and a separate user interface. This interface is a simple rotary knob with a push-button and ten tri-color LEDs to control and monitor all trailer brake activity. It also features a triple-axis accelerometer for highly responsive, smooth stops on any grade. The separated module and interface of the Spectrum brake controller allow it to integrate with the vehicle unlike any other. The main module can be mounted behind the dash and completely out of sight. The separate rotary knob provides a sleek, subtle interface that mounts on the dash of the vehicle wherever desired. It features ten LEDs with three colors each (red, green and blue) to indicate trailer brake activity and power adjustment. The rotary knob and integrated push-button allow for simple and effective operation of the control settings and manual adjustment. The Spectrum trailer brake controller offers superior safety and helps protect the life of your vehicle and trailer with its advanced triple-axis accelerometer. This integrated circuit detects the motion of the vehicle and trailer when making stops and applies the precise amount of brake power for maximum efficiency and effectiveness. The three axes of the circuit also enable the brake control to compensate when going up or down a hill. Like most CURT brake controllers, the Spectrum installs using one of our vehicle-specific quick plug harnesses. It also has automated leveling and calibration capabilities to simplify and speed up the installation process. The Spectrum trailer brake controller comes with mounting hardware for a complete installation.

Category Information


Spectrum Brake Control

Application

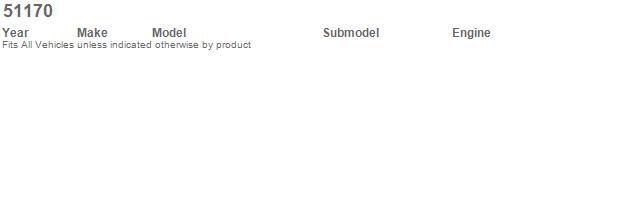

Application (Buyer Guide)
